1-1/2" Heavy Duty Oil Rubbed Bronze Piano Hinge

A great hinge for fine wood cabinetry.

Hope chest lids, custom cabinet doors, drop-fronts and fold-down desks: when the hardware shows, you want it to look the part. This continuous hinge pairs a warm antique bronze finish with real heavy-duty strength.

Furniture-quality finish.

The rich oil rubbed bronze finish complements cherry, walnut, oak and painted pieces alike, and the matching screws mean nothing looks out of place.

Heavier than the hinges you'll find elsewhere.

Each leaf is a full .060" thick. Most piano hinges on the market are only .035"–.040", so this one is roughly 50% beefier.

Specifications.

• Width: 1-1/2" when fully open
• Leaf thickness: .060"
• Material: steel with an oil rubbed bronze finish

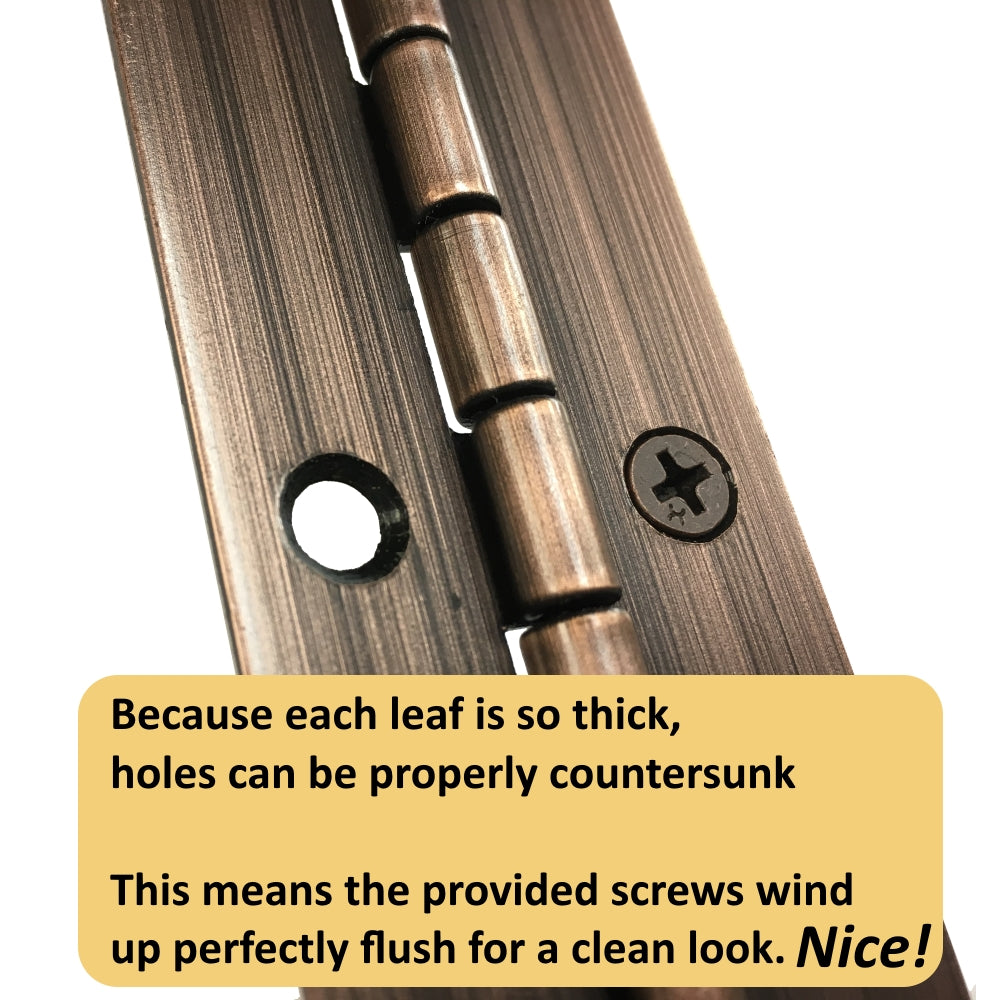

• Holes: countersunk for #6 screws, every 3"

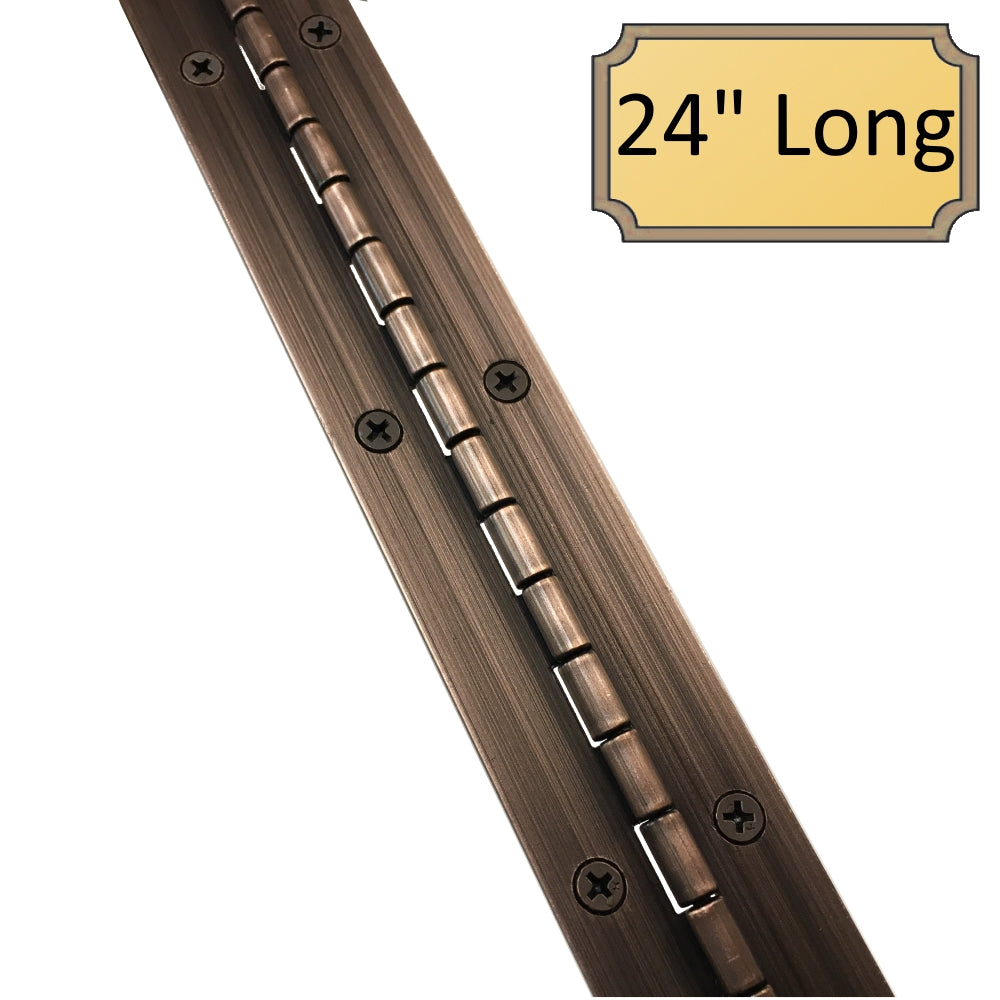

• Lengths: 24", 48" and 72", and easy to cut down
• Screws: matching #6 x 3/4", included

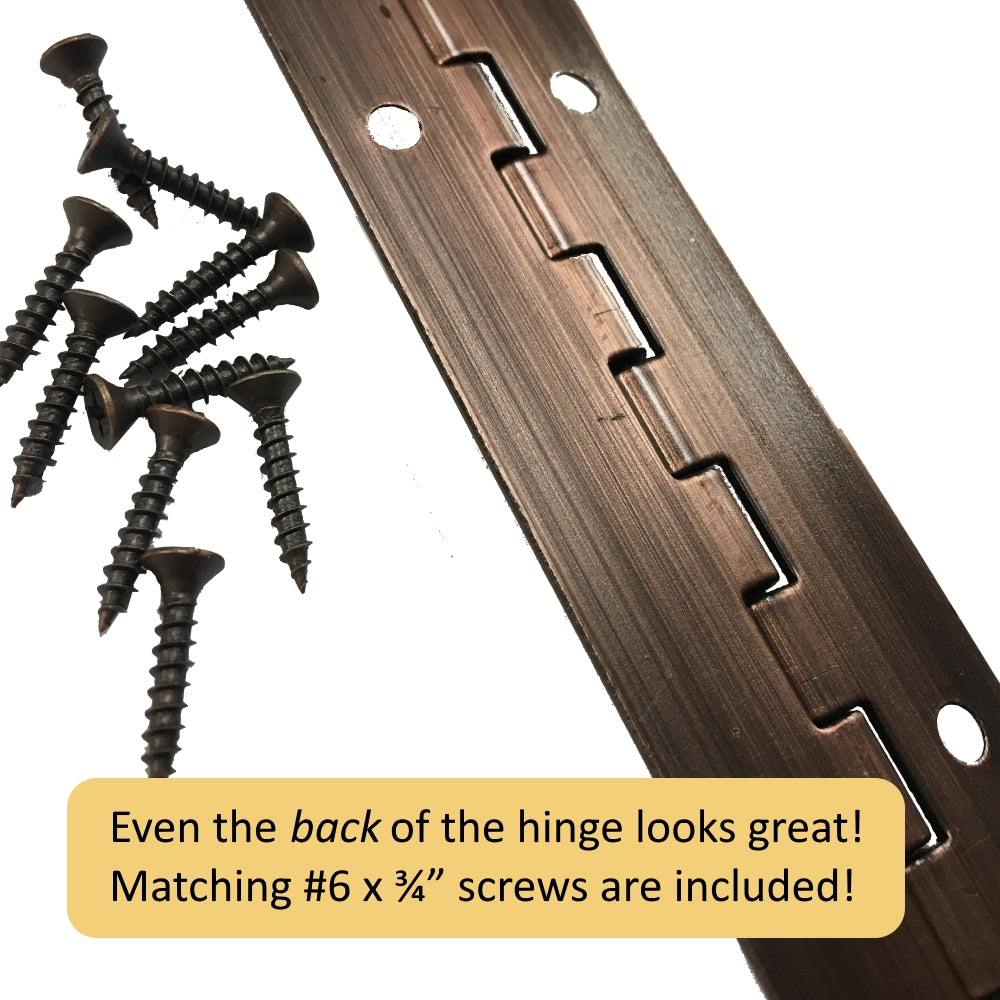

Screws included.

Matching bronze-finish #6 x 3/4" screws come in the box, so you're ready to install.

Installation tips.

• Hold the hinge against the work and center it so the end holes look balanced.
• Mark your cut line (a strip of masking tape makes it easy to see) and cut to length with a hacksaw.
• File or grind away any burr left from the cut.
• Pre-drill only a few holes, using a self-centering bit, and hang the door or lid.
• Check the alignment. The undrilled holes let you make fine adjustments.
• Once it's right, pre-drill and drive the rest of the screws.

Here's what you get.

• 1 Oil rubbed bronze piano hinge, 1-1/2" wide, in the length you choose
• Matching #6 x 3/4" installation screws
