1-1/2" Heavy Duty Stainless Steel Piano Hinge (Outdoor Rated)

Built for the outdoors, and for anything that takes a beating.

Doors, fold-down seats, boat and deck box lids, outdoor cabinets: this 304 stainless piano hinge carries the load along its entire length and shrugs off the weather.

Heavier than the hinges you'll find elsewhere.

Each leaf is a full .060" thick. Most piano hinges on the market are only .035"–.040", so this one is roughly 50% beefier.

Specifications.

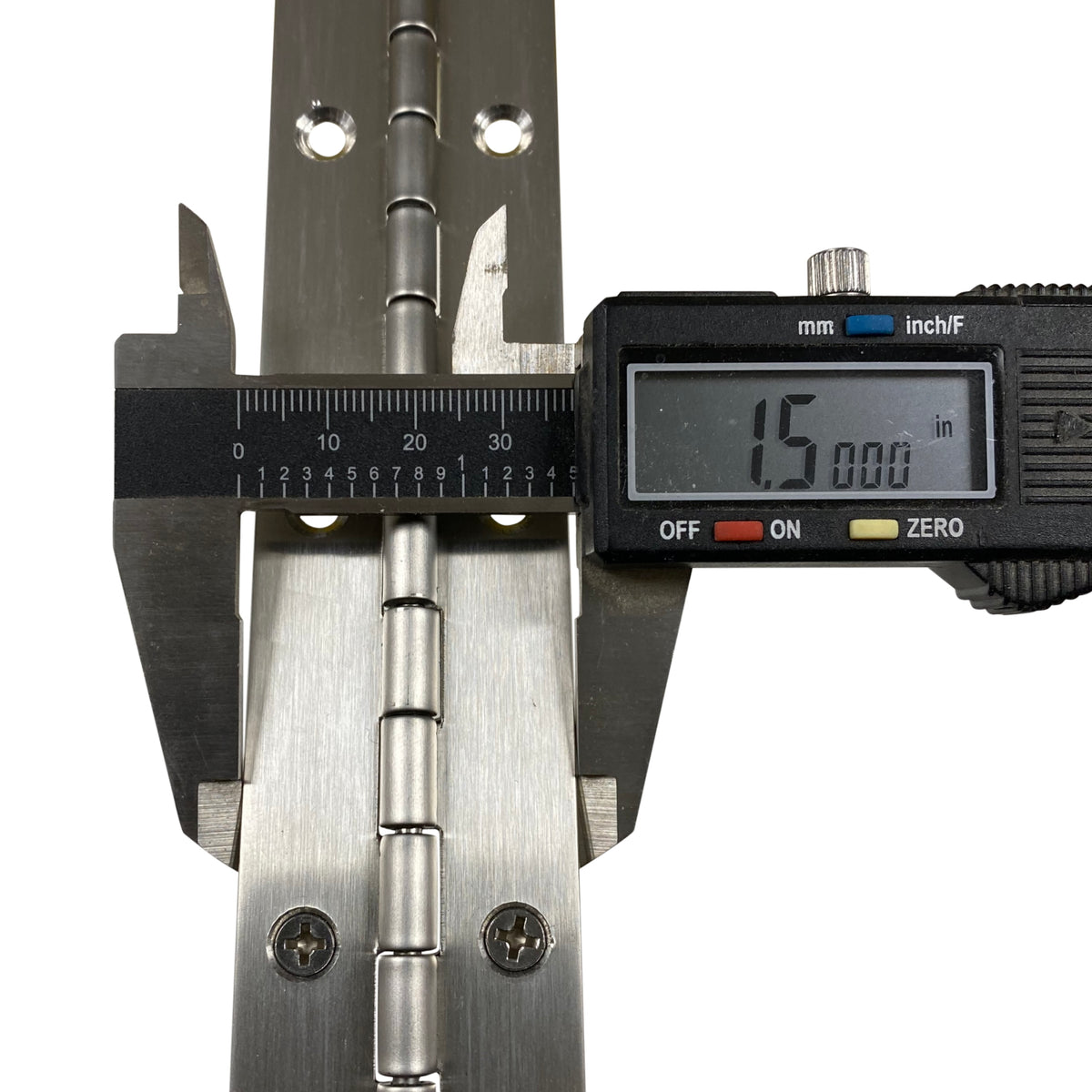

• Width: 1-1/2" when fully open

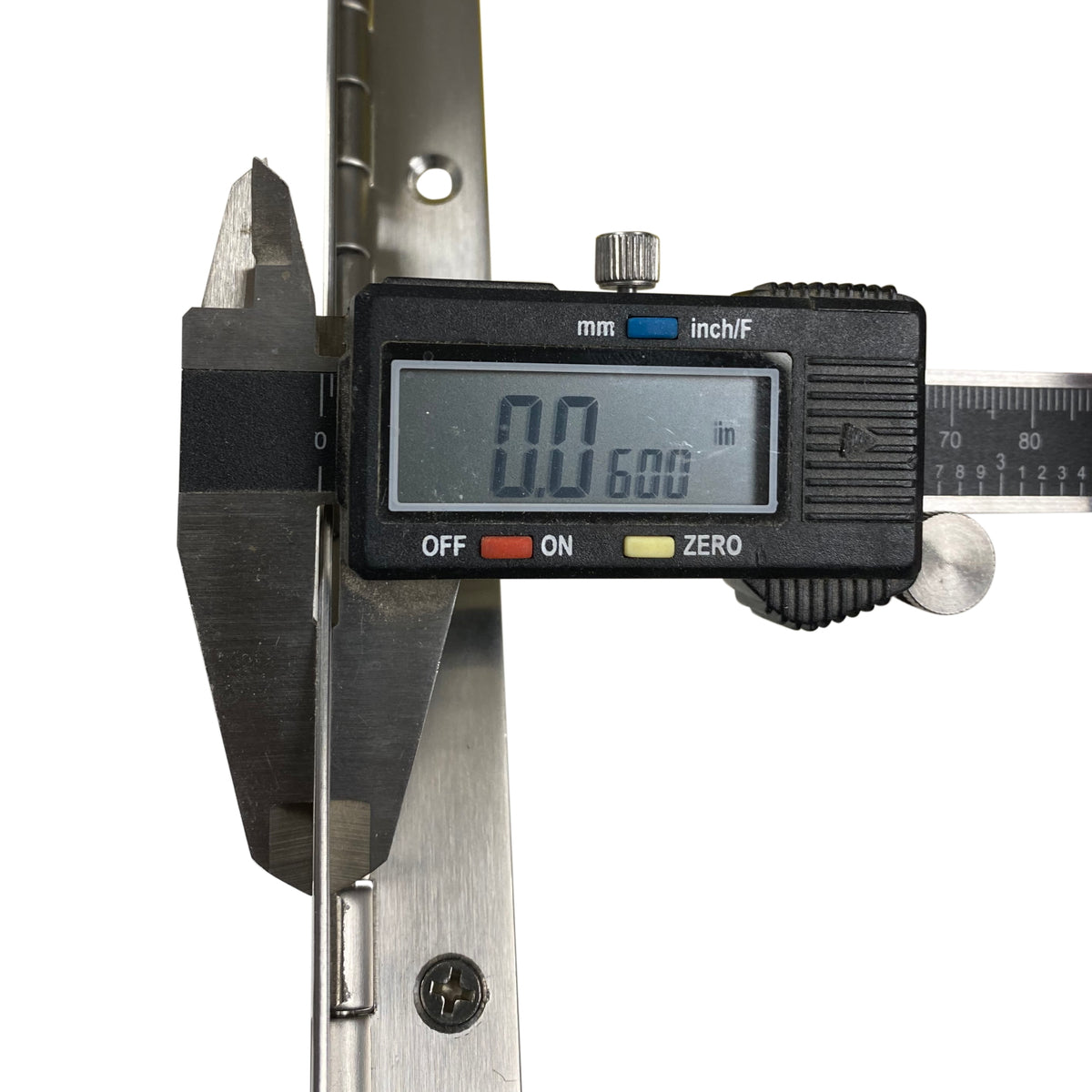

• Leaf thickness: .060"
• Material: 304 stainless steel
• Finish: satin stainless

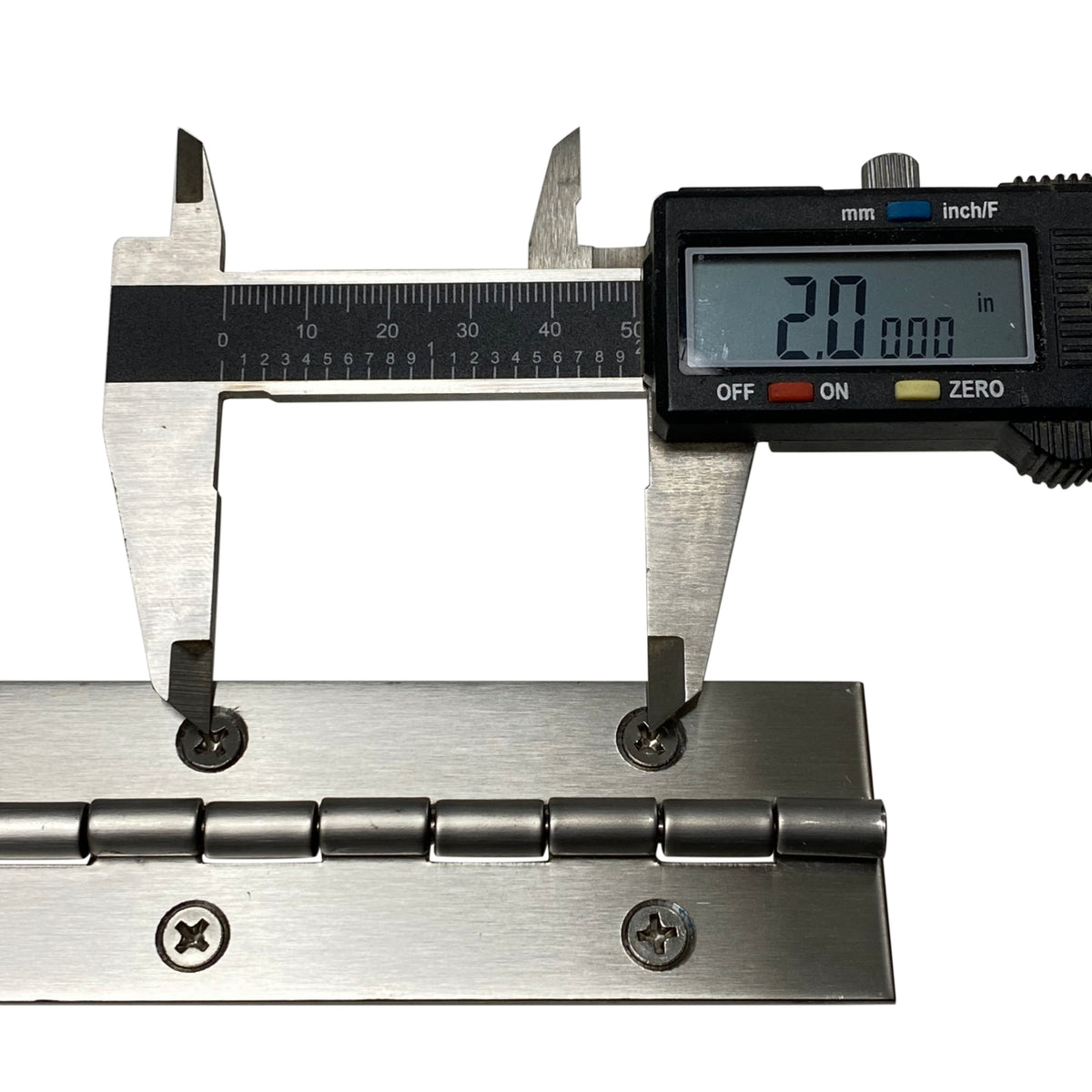

• Holes: countersunk, on 2" centers

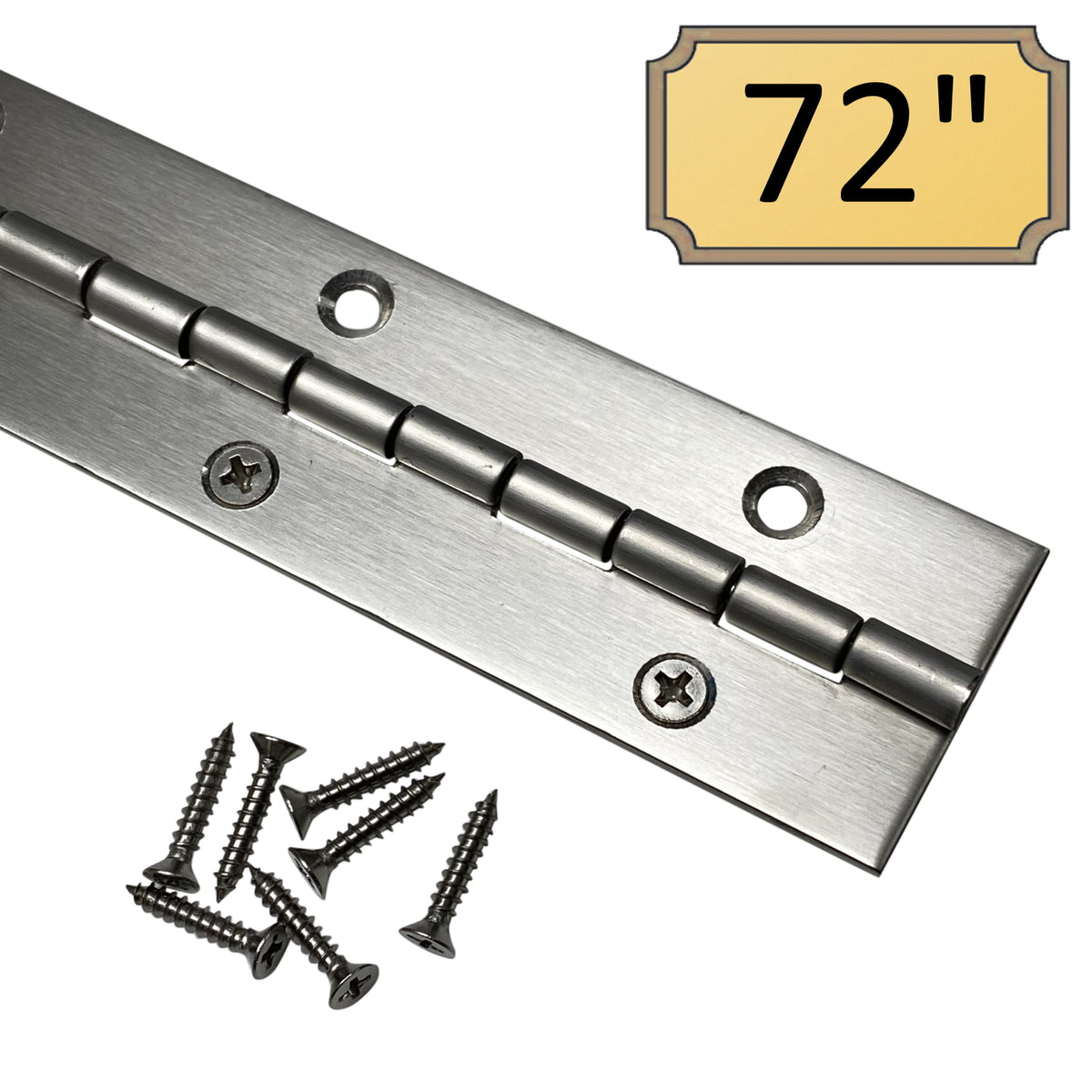

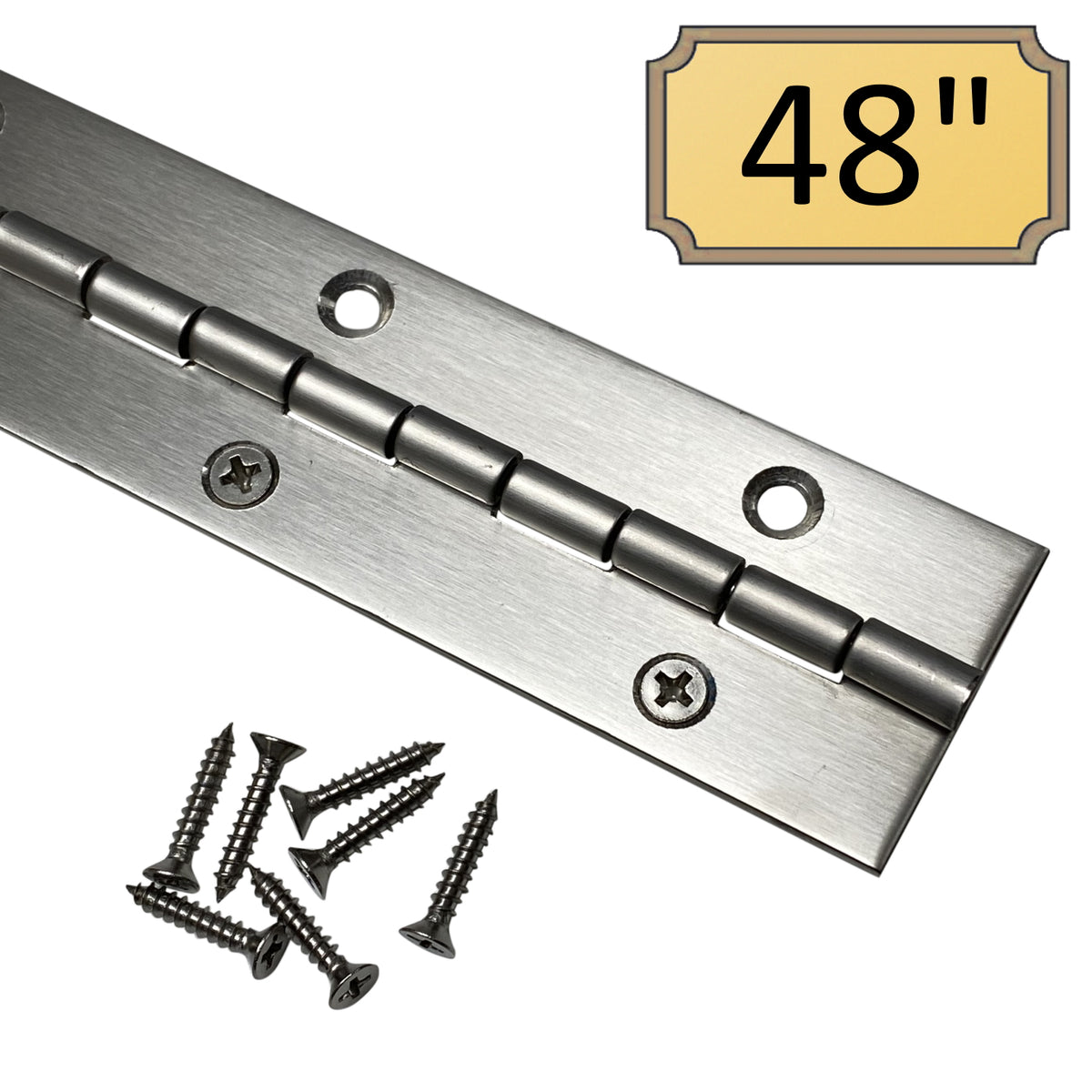

• Lengths: 24", 48" and 72", and easy to cut down
• Screws: #6 x 3/4" Phillips head, included

Perfectly countersunk holes, and lots of them.

Holes every 2" give you plenty of fastening points, and the clean countersink lets each screw head sit flush.

A finish that hides fingerprints.

The satin finish has a soft, brushed look that discourages finger marks and stays looking clean.

Perfect for outdoor use.

304 is the grade of stainless used for marine and outdoor hardware. Rain, sun and salt air are no problem. This is the hinge to choose when your project lives outside.

Screws included.

Matching #6 x 3/4" Phillips head screws come in the box, so you're ready to install.

Installation tips.

• Hold the hinge against the work and center it so the end holes look balanced.
• Mark your cut line (a strip of masking tape makes it easy to see) and cut to length with a hacksaw.
• File or grind away any burr left from the cut.
• Pre-drill only a few holes, using a self-centering bit, and hang the door or lid.
• Check the alignment. The undrilled holes let you make fine adjustments.
• Once it's right, pre-drill and drive the rest of the screws.

Here's what you get.

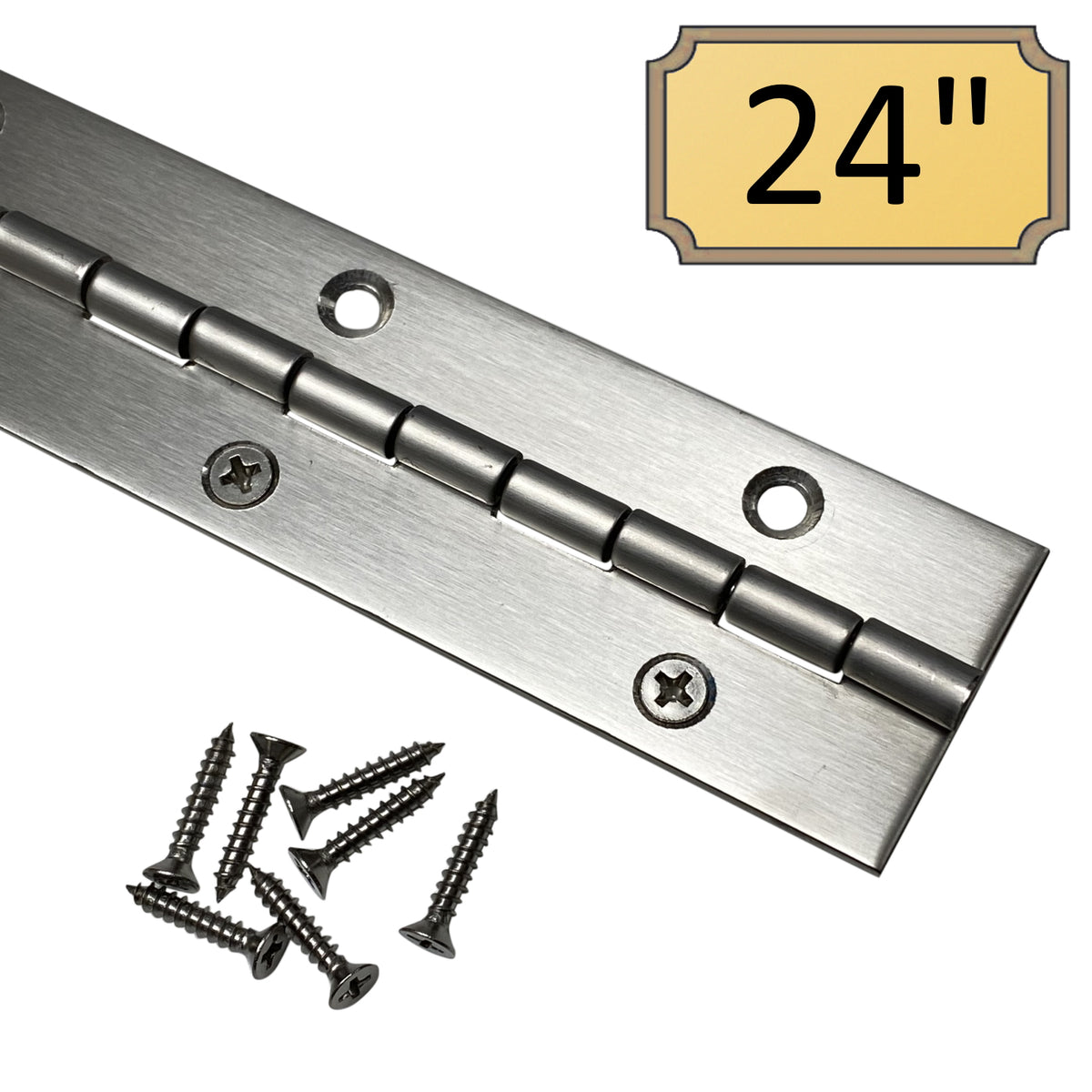

• 1 Stainless steel (304) piano hinge, 1-1/2" wide, in the length you choose
• Matching #6 x 3/4" installation screws
