Heavy duty cabinet leveler legs with lock nuts, 4 pack

Heavy Duty Cabinet Leveler Legs with Lock Nuts (4 Pack)

5.0(4)
$19.99
SKU: CLE-10004-ZN

You're $99.00 away from FREE shipping

  • Usually ships same day
  • Free shipping on orders over $99

Built for real weight.

Each leg is rated for 600 lbs. The housing is 14 ga. (.080") zinc-plated steel, so these will hold up under loaded cabinets, workbenches and built-ins.

The ledger carries the load, not the screws.

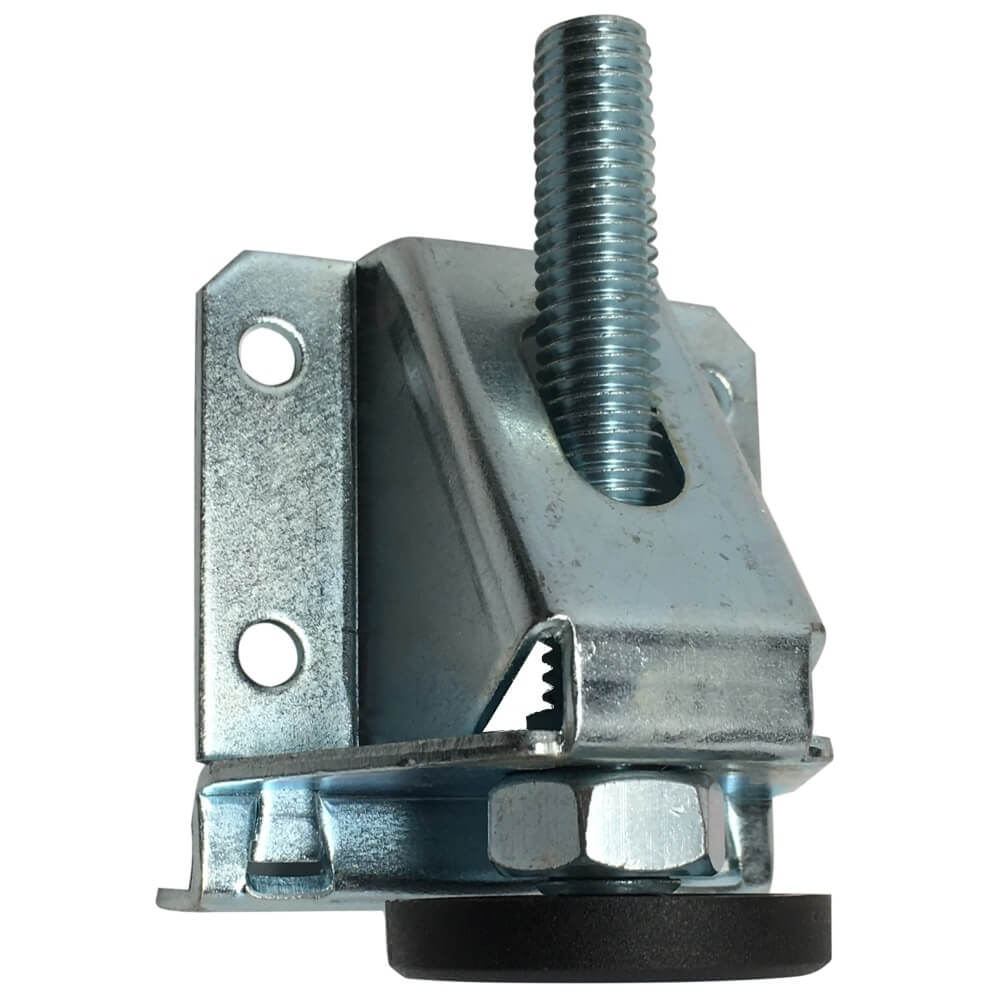

Every housing has a 7/16" wide ledger that hooks under the cabinet, so the weight bears on steel instead of hanging on the screws. Hook it on and fasten it with the screws provided. They're pan head screws and take a #2 Phillips bit.

Lock it where you set it.

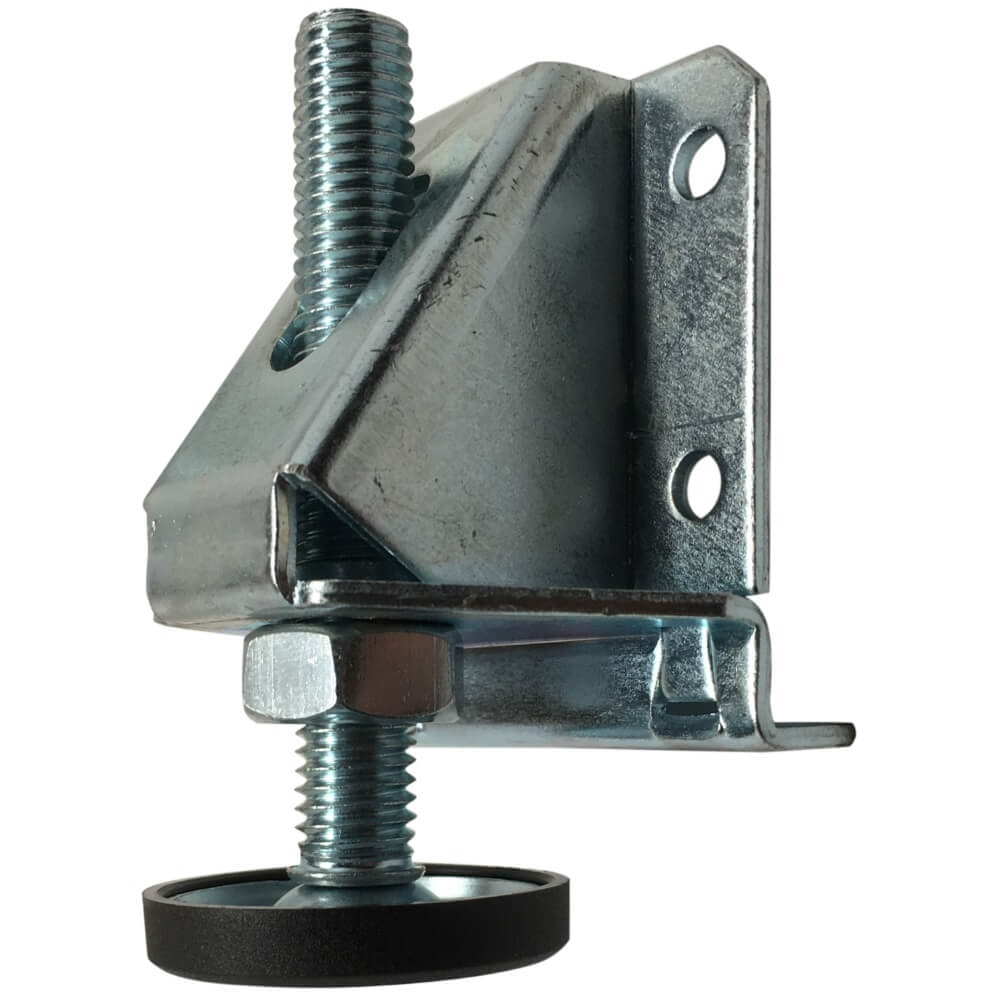

The 10mm (3/8") shaft adjusts from 0" to 2-1/2". Once it's level, snug the 10mm lock nut and it stays put.

Easy to adjust.

Lift the cabinet a little with a pry bar and turn the shaft by hand, or use the included 5mm hex wrench. If you can't get at the leg, drill an access hole through the cabinet floor and adjust from above.

Floor-friendly feet.

The 1-1/4" foot spins freely and has a black polyethylene cap.

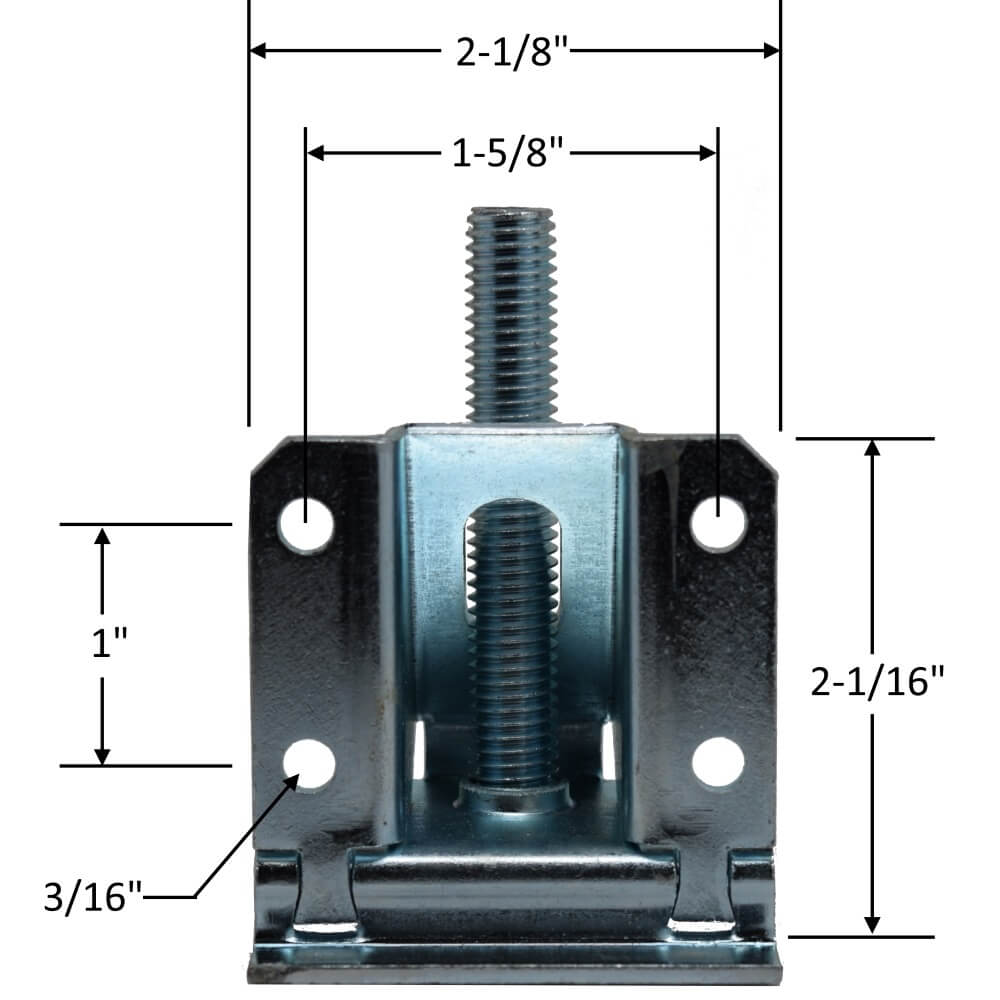

Specifications.

  • Housing: 14 ga. (.080") zinc-plated steel
  • Ledger width: 7/16"
  • Load rating: 600 lbs. per leg
  • Shaft: 10mm (3/8") diameter
  • Adjustment: 0" to 2-1/2"
  • Foot: 1-1/4" diameter, free-spinning, black polyethylene cap
  • Lock nuts: 10mm
  • Screws: #10 x 3/4" nickel-plated pan head, take a #2 Phillips bit

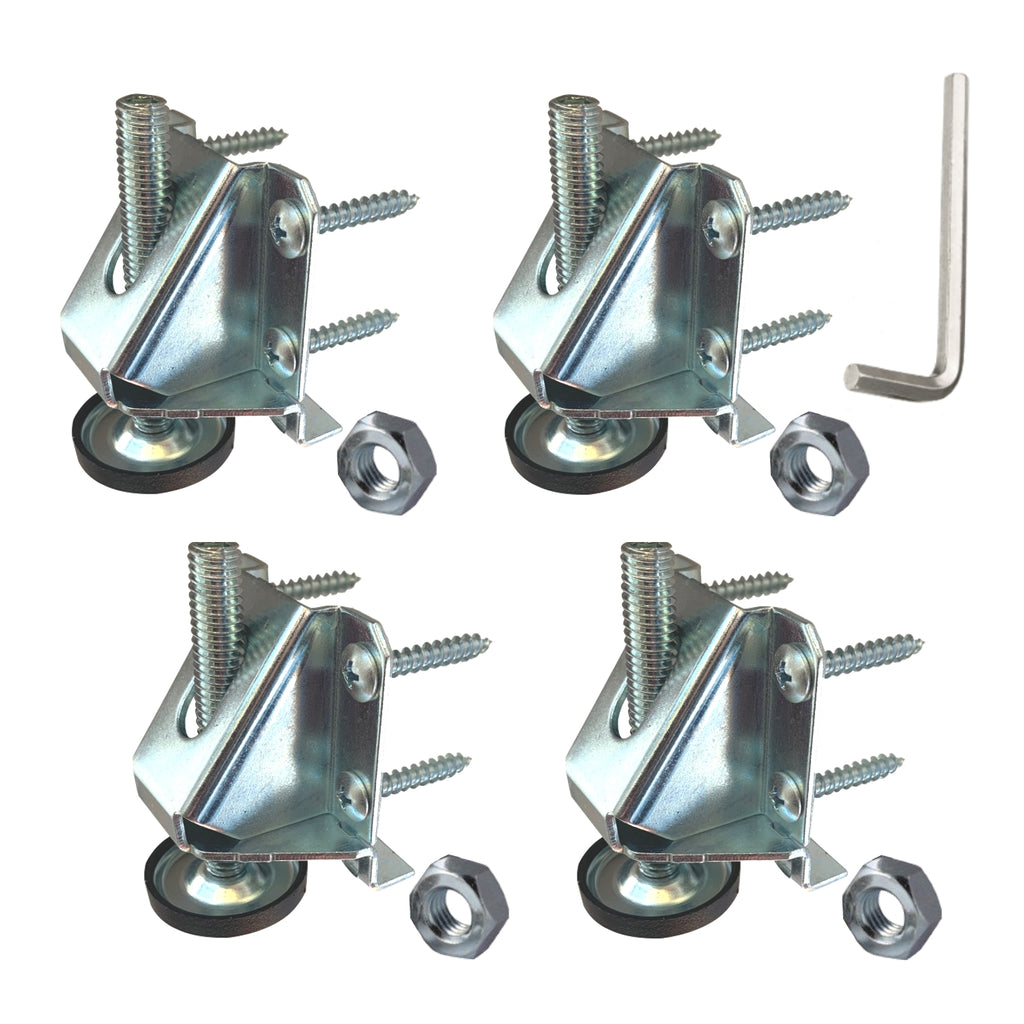

Here's what you get.

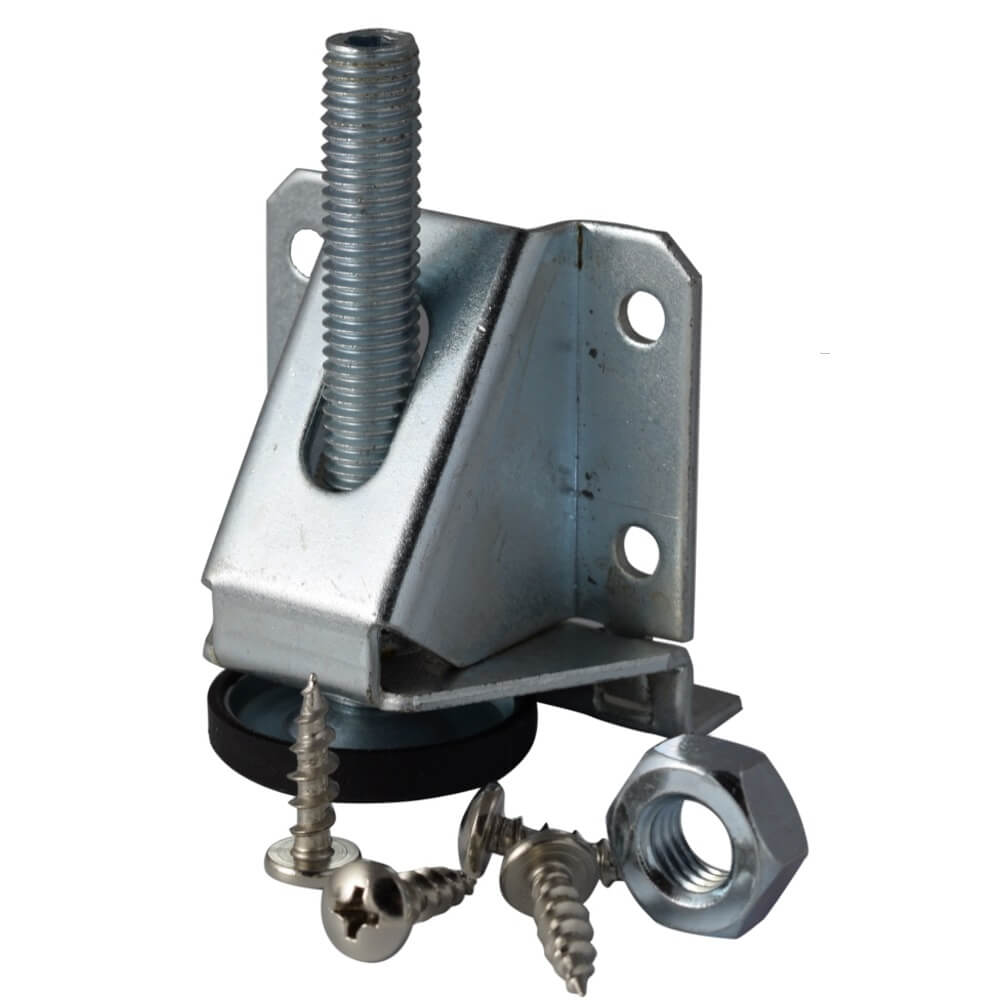

  • 4 Heavy duty leveler legs with lock nuts
  • 16 Pan head screws (#10 x 3/4", #2 Phillips)
  • 1 5mm Hex wrench
